Explore our commercial-grade swing and sliding door systems engineered for extreme duty cycles, absolute accessibility compliance, and flawless architectural integration.
Omega automatic entrance systems are configured to meet standard door sizes and load weight requirements.
Severe Traffic
The OA‑100 SM is Omega's flagship automatic swing door operator, surface-mounted above the door on the transom header. Powered by a 1/3 HP 24VDC permanent magnet motor, it supports doors up to 450 lbs with adjustable speed, selectable Push & Go, built-in obstacle detection, and an on-board power supply that eliminates the need for a separate power source. Available in Left Hand, Right Hand, and Dual configurations in Push and Pull — Anodized Clear and Anodized Black finish.
For demanding exterior and pressurized environments, the OA‑100 SM‑XP adds a Power Close gearbox with integrated encoder technology — delivering positive door latching against stack pressure, wind load, and seal resistance, with continuous precise position monitoring throughout the full door travel cycle. UL 325 Listed · TÜV SUD Certified · CSA C22.2 · AAADM Compliant. Manufactured in Vaughan, Ontario — available same-day.
Concealed Design
The OA‑100 BL is Omega's concealed bottom load automatic swing door operator — engineered for prestige lobbies, condominium towers, hotels, and institutional buildings where a clean, uninterrupted transom line is a design requirement. Unlike surface-mounted operators, the OA‑100 BL mechanism is completely hidden overhead, with no visible hardware from either side of the door. Available in two configurations — Centre Spindle (CS) and Centre Hung (CH) — each supporting Left Hand, Right Hand, and Dual pivot arrangements.
Powered by a 1/3 HP 24VDC permanent magnet motor with on-board power supply, the OA‑100 BL delivers the same low-energy, barrier-free performance as the OA‑100 SM in a fully concealed format. UL 325 Listed, TÜV SUD Certified, CSA C22.2 compliant, and AAADM Compliant. Available in Anodized Clear and Anodized Black finish. Manufactured in Vaughan, Ontario — mostly available 1 to 2 business days.
Full Breakout

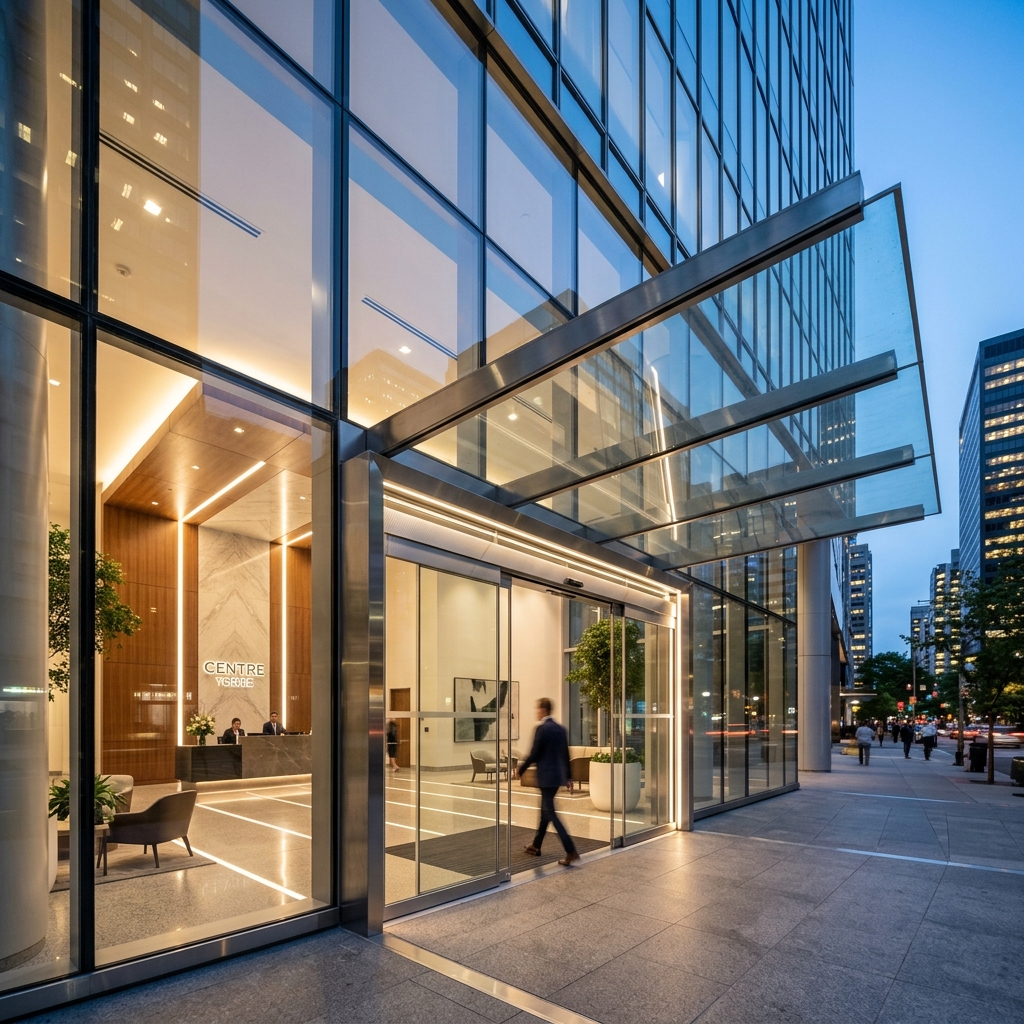

The OA‑300 is Omega's automatic sliding door system — engineered for high-traffic commercial, institutional, and retail entrances where a swing door is not practical or where maximum clear opening width is required. Driven by a DC brushless motor with hypoid gear technology, the OA‑300 delivers smooth, quiet, and reliable operation across 20 adjustable torque levels and 9 adjustable speed settings, supporting single panels up to 400 lbs. Available in configurations — Full Breakout BiPart, and Full Breakout Single — in both Left Hand and Right Hand arrangements.
Full Breakout panels retract completely for maximum emergency egress, making the OA‑300 fully compliant with ANSI A156.10 life-safety requirements. The system accommodates electric lock integration with Fail Safe and Fail Secure settings, presence detector inputs, and open/closed status monitoring. Available in Anodized Clear and Anodized Black finish with Aluminum Anodized frame. UL Listed, TÜV SUD Certified, CSA C22.2 compliant, ANSI A156.10 compliant, and AAADM Compliant. Manufactured in Vaughan, Ontario — 3 to 4 week delivery.
Fixed Sidelight
The OA‑300 is Omega's automatic sliding door system — engineered for high-traffic commercial, institutional, and retail entrances where a swing door is not practical or where maximum clear opening width is required. Driven by a DC brushless motor with hypoid gear technology, the OA‑300 delivers smooth, quiet, and reliable operation across 20 adjustable torque levels and 9 adjustable speed settings, supporting single panels up to 400 lbs. Available in configurations — Fixed Sidelight BiPart, and Fixed Sidelight Single — in both Left Hand and Right Hand arrangements.
Fixed Sidelight panels slide active glass panels only while sidelights remain fixed, making the OA‑300 fully compliant with ANSI A156.10 life-safety requirements. The system accommodates electric lock integration with Fail Safe and Fail Secure settings, presence detector inputs, and open/closed status monitoring. Available in Anodized Clear and Anodized Black finish with Aluminum Anodized frame. UL Listed, TÜV SUD Certified, CSA C22.2 compliant, ANSI A156.10 compliant, and AAADM Compliant. Manufactured in Vaughan, Ontario — 3 to 4 week delivery.
AODA Compliant

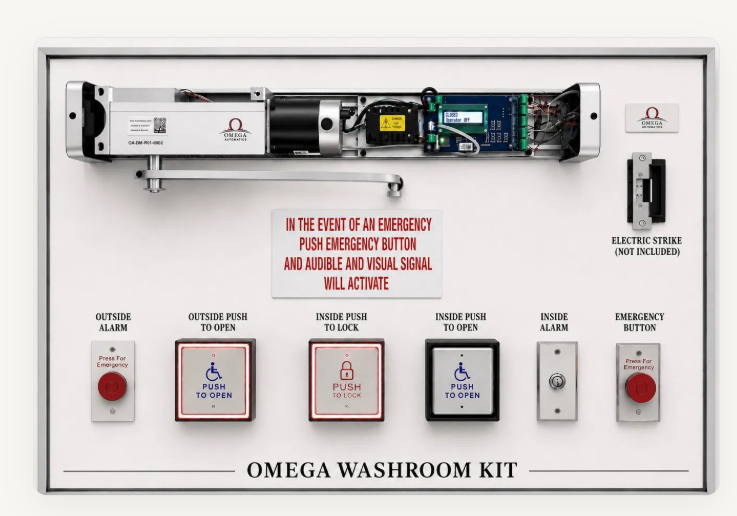

Our Series 4000 Universal Washroom Package is a complete, code-compliant control solution engineered for public commercial restrooms. Designed to integrate directly with our OA‑100 SM swing door operators, it delivers a seamless, barrier-free access control experience.
The package coordinates automatic operators, magnetic locks, occupancy indicator plates, and emergency alarm signals. If an emergency occurs inside, pressing the emergency button activates loud audible and bright visual alarms outside while automatically unlocking the door for immediate assistance.
Complete your automatic entrance setup with our fully compatible accessibility and security hardware.
High-performance motion and presence sensors mapping the door path to detect pedestrians and prevent collisions, strictly complying with ANSI safety codes.

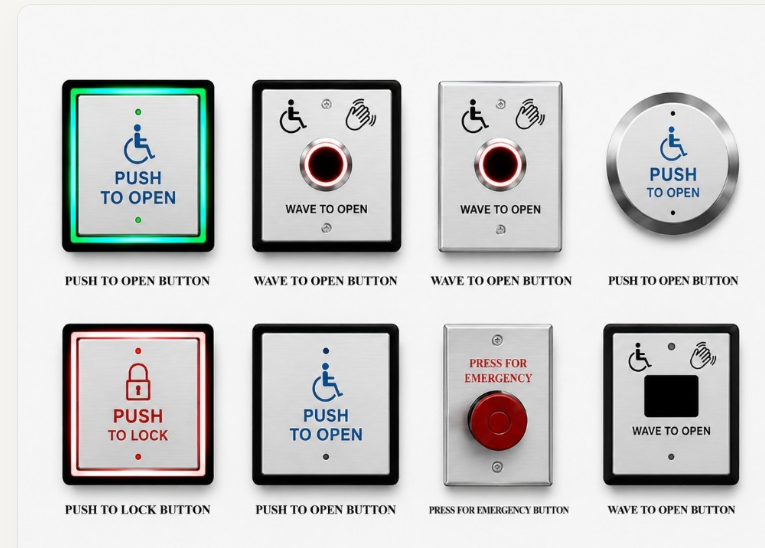

Squared and round heavy-duty stainless steel push buttons, featuring prominent blue handicap logos, available in both wired and wireless configurations.
Seamless relays to interface with proximity card readers, numeric keypads, and fire command systems, allowing restricted security schedules.
Emergency battery backups that mount directly inside the operator header, providing uninterrupted power for up to 300 cycles during electric grid blackouts.
We manufacture and distribute heavy-duty stainless steel push buttons and advanced microwave-sensing wave plates. Available in various mounting styles (single gang, double gang, jamb mount, and round column wraps) to suit any commercial framing requirement.
Coordinate directly with our access application designers. We supply custom schematic layouts, blocks, and architectural guide specifications for any layout.
