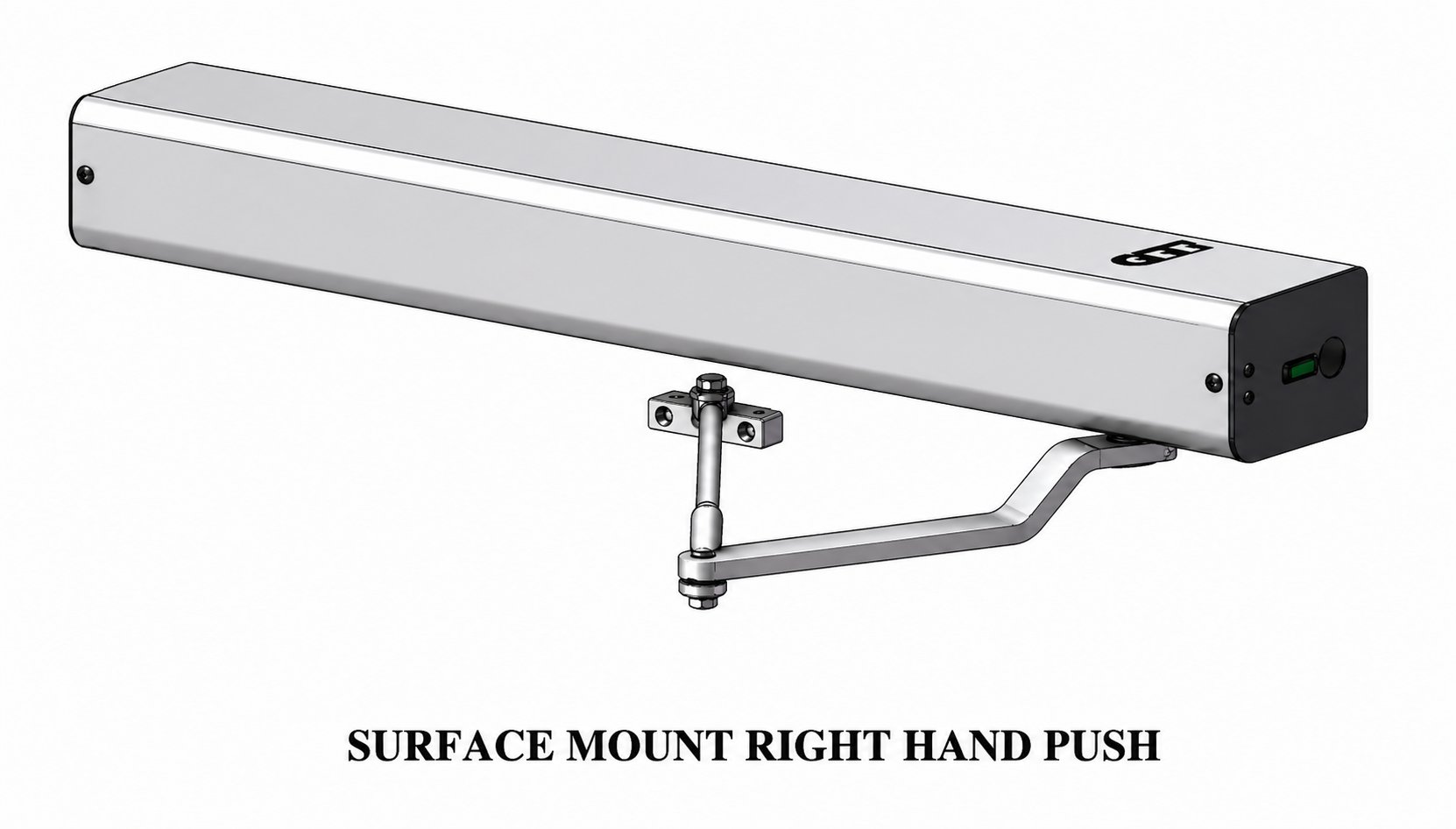

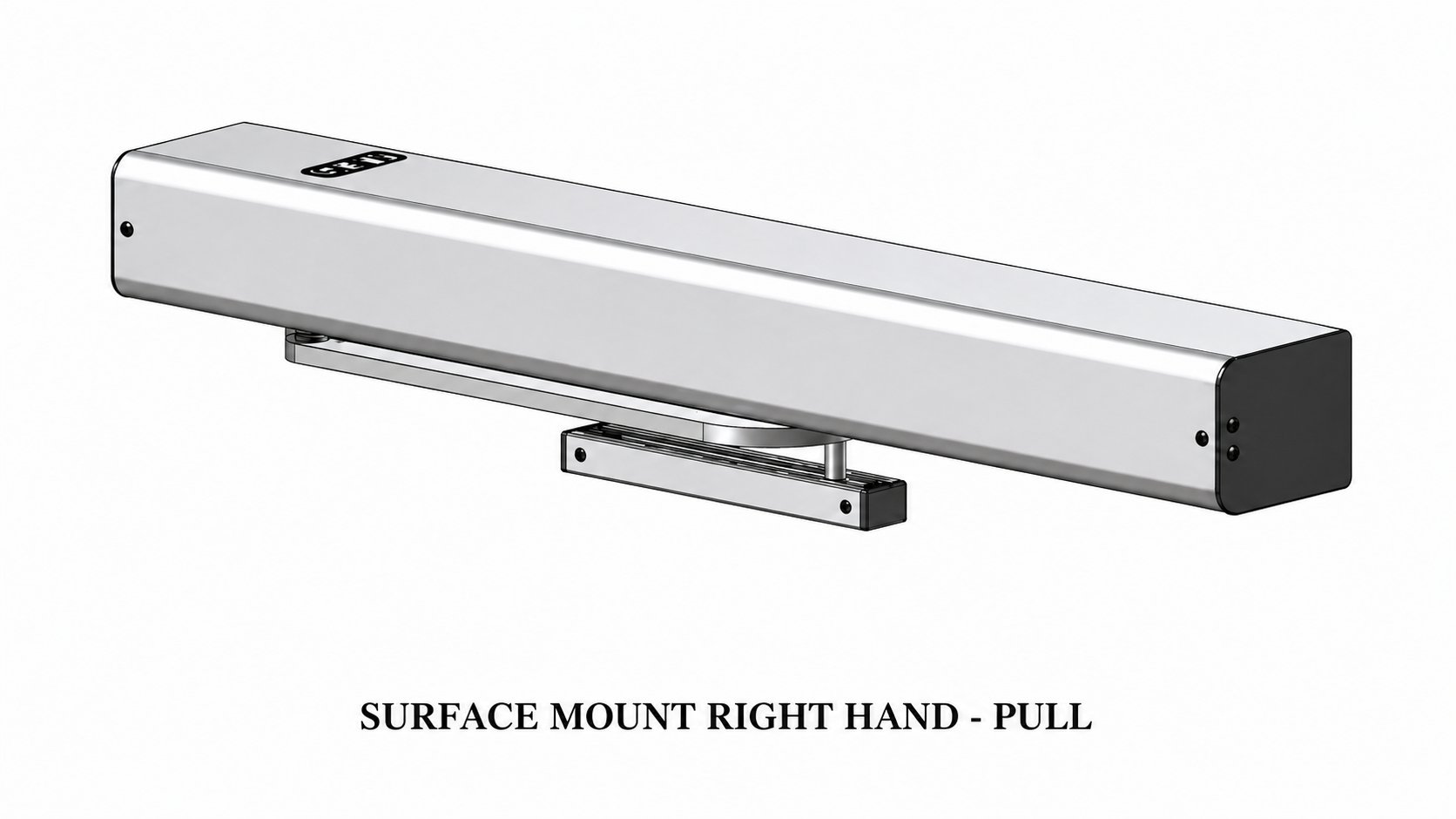

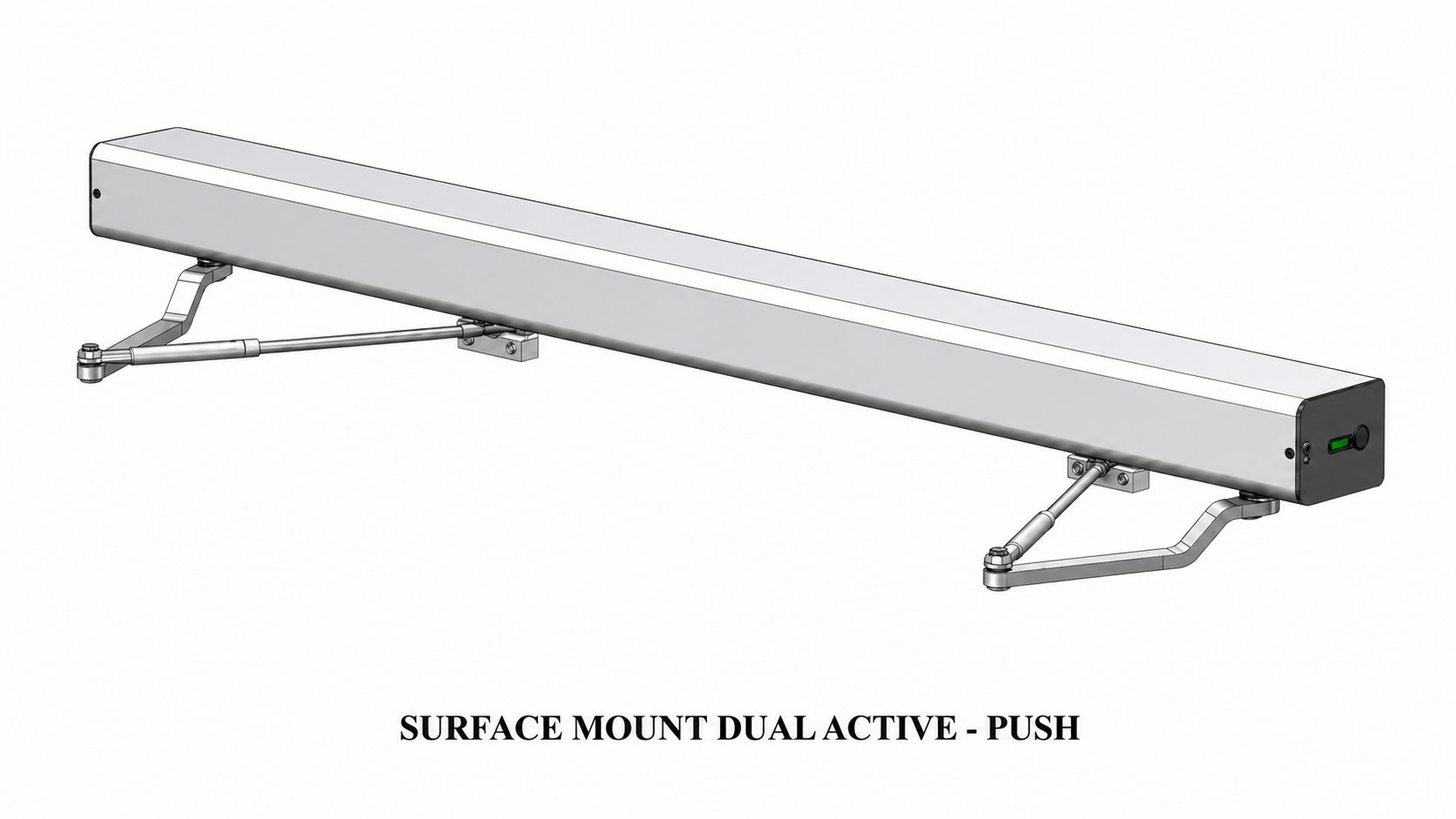

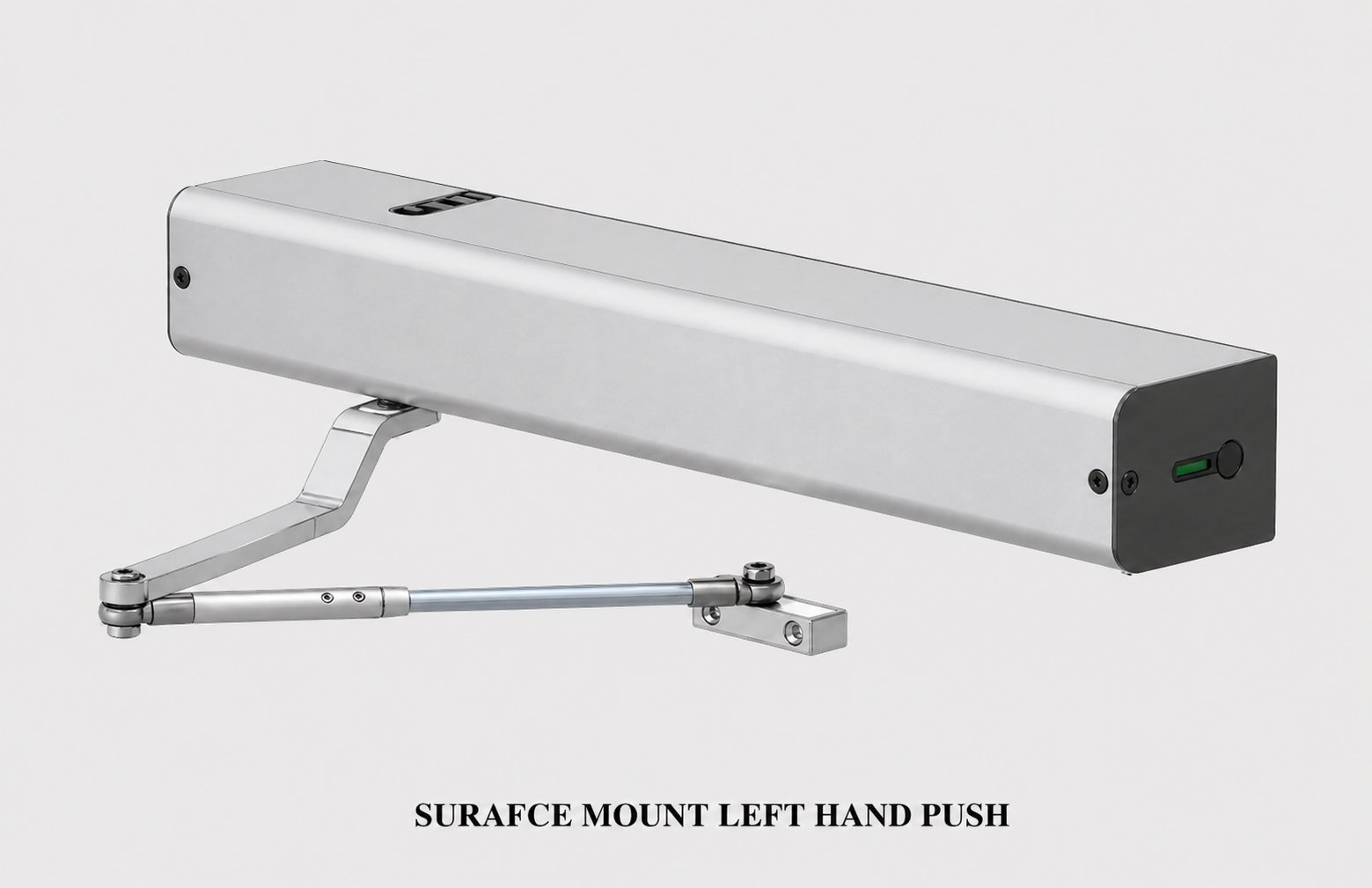

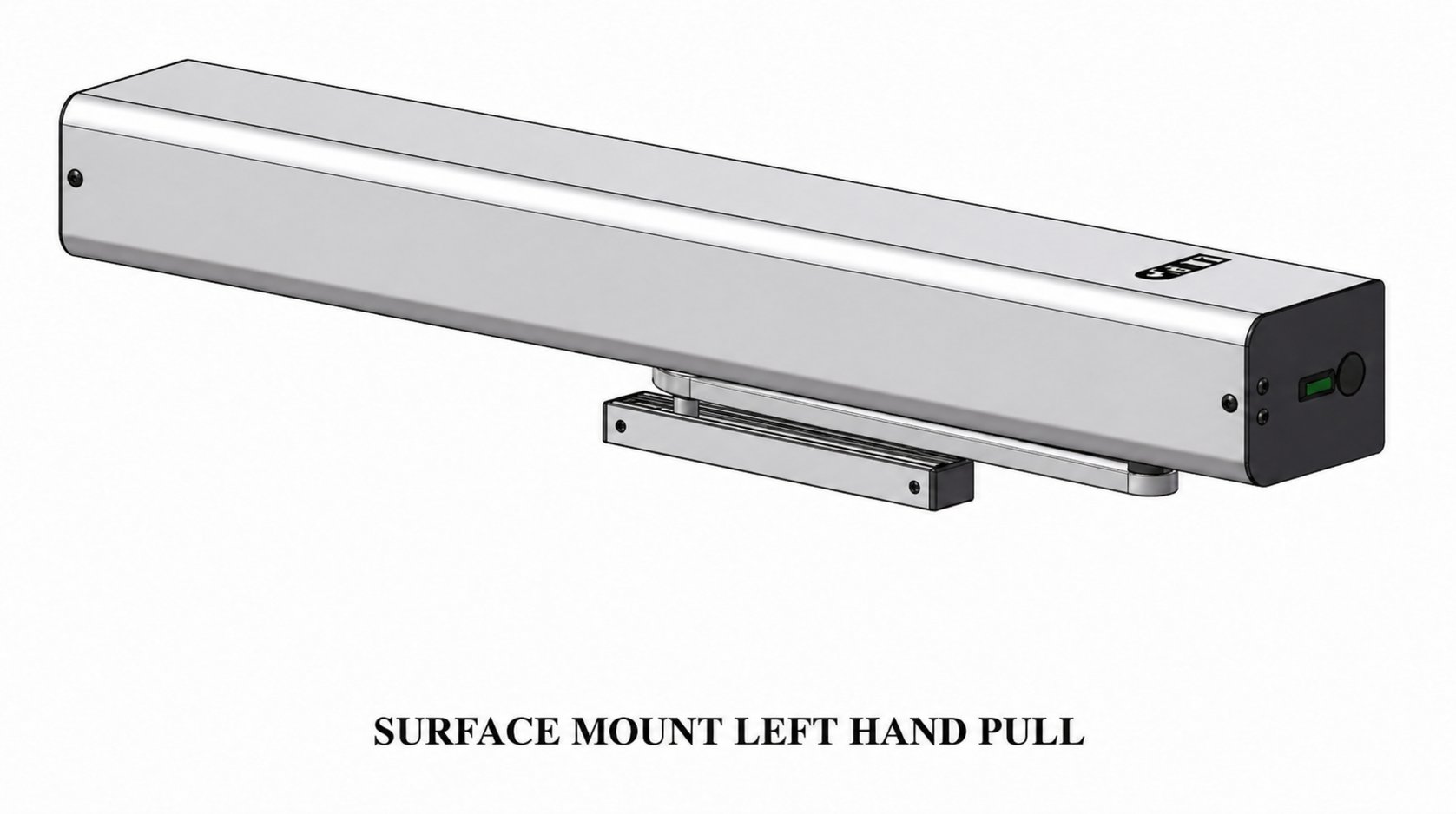

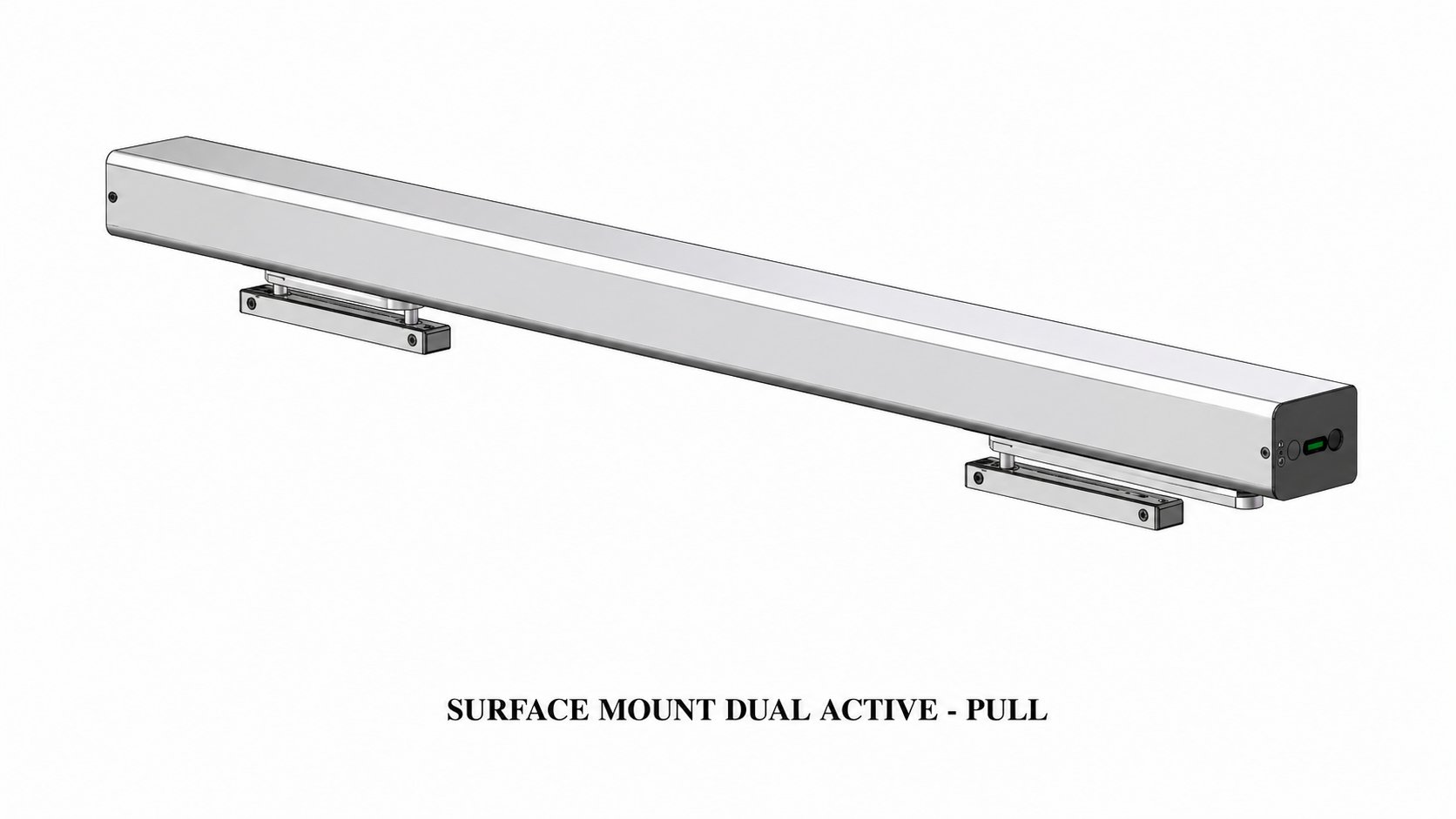

Omega's flagship product — trusted across thousands of Canadian commercial, healthcare, condominium, and institutional installations. Push and Pull configurations. Single and dual door. Anodized Clear Finish and Anodized Black Finish. Designed with both the contractor and customer in mind.
| Power Supply | 120VAC, 60Hz |
| Door Capacity | Upto 450 lbs of Weight |
| Header Lengths | 39" and 41" standard; custom on request |
| Control Board | Universal digital with visual display |
| DC Motor | 1/3 hp 24VDC permanent magnet |
| On Board Power Supply | 24 VDC 1.2 A |
| Position Switch (Magnet Reader) | Included — precise door position detection |
| Electric Lock Input | Fail Safe / Fail Secure |
| Open/Closed Status Output | Dry contact monitoring included |
| SM-XP Option Available | Surface Mount — stack pressure compensation; selectable |
| Fire Relay | Included |
| Finish Options | Anodized Clear Finish · Anodized Black Finish |
| Temp. Range | -30°C to +50°C |
| Origin | Vaughan, Ontario, Canada |
| Warranty | 1 year parts from date of invoice |
Depth 5" / Height 4½" · Standard width 39" for 36" door
Upto 450 lbs of Weight
1/3 hp 24VDC permanent magnet — long-lasting, trouble-free
Selectable - Yes
Reversible on Opening
Selectable power close — ensures door positively latched
24 VDC 1.2 A
Adjustable opening & closing speeds
Selectable closing force settings
Fail Safe / Fail Secure
Selectable before open & closing — prevents electric strike binding · Time and Force Adjustability
Set latching position and closing speed in latch zone
Set speed & position of back check for positive door control
Dry contact output for remote door status monitoring
Yes
Options available for non-standard applications
Interior / Exterior - Swing doors
39" and 41"
